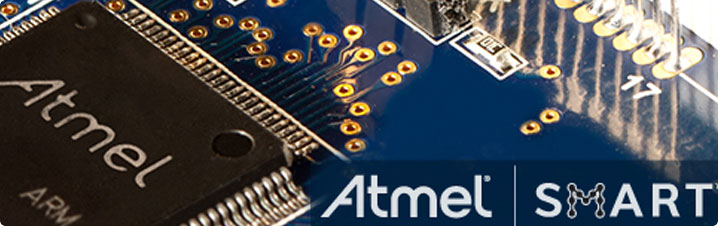

Atmel | SMART ARM Processor Based MCUs

저전력과 고성능으로 입증 된 혁신적인 마이크로 컨트롤러 기술

탁월한 성능, 효율성 및 유연성

사용의 용이성, 낮은 전력 소모와 높은 수준의 통합, Atmel® AVR® 8 비트 및 32 비트 마이크로 컨트롤러 (MCU)를 Atmel® 보완 전달 ARM® 프로세서 기반 마이크로 컨트롤러와 마이크로 컨트롤러의 SMART 라인. 이러한 장치는 성능, 전력 효율 및 설계 유연성의 독특한 조합을 제공한다. 시장 출시 시간을 줄이기 위해 최적화 된, 그들은 C 및 어셈블리 프로그래밍을위한 업계에서 가장 코드 효율적인 아키텍처를 기반으로한다. 다른 마이크로 컨트롤러는 더 나은 전력 효율과 더 많은 컴퓨팅 성능을 제공합니다. 업계 최고의 개발 툴 및 디자인 지원을 추가로 더 빨리 시장에 설계를 얻을 수 있도록. 제품이 출시 일단 플러스, 대형 AVR 제품군은 새로운 시장으로 확장하기가 쉽고 비용 효율적으로 제작, 개선하고 제품을 향상시키기 위해 지식을 재사용 할 수 있습니다.

Devices
Device Family Summary Benefit Applications Technologies Key Parameters
Atmel | SMART SAMA5 Cortex-A5-Based Embedded MPUs High Performance
Low Power
State-of-the-Art Security
Ease of Use		 Human-machine Interfaces (HMI)
Control panels
Smart grid Infrastructure
Network gateways
Machine-to-machine (M2M) systems
2D barcode scanners
Barcode printers
Machine vision equipment
Fitness/outdoor equipment
Point-of-sales (POS) terminals		 ARM core
Low power
Linux support
Security		 Up to 945DMIPS
Floating-point unit (FPU)
Neon technology, Trust Zone
Down to 150mW in Active Mode
Down to 200uW in low-power mode
Connectivity peripherals
720p hardware video decoder
Hardware encryption engine including RSA/ECC, TRNG/SHA, secure boot, secure storage, encrypted external DDR, tamper detection pins, and environmental monitors
SAM C ARM Cortex-M0+ Microcontrollers 5V Operating Voltage
Ease of Use		 Appliances, Industrial Control and other 5V Applications ARM processor
Low power
Atmel QTouch capacitive touch
Event system
Self-programming
DMA
CAN		 32KB to 256KB Flash
48MHz
Multiple serial communication modules (SERCOM)
32- to 64-pin packages
Atmel® | SMART SAM D ARM Cortex-M0-Based MCUs New Benchmark for Flexibility and Ease-of-Use General purpose ARM processor
Low power
QTouch capacitive touch
Event system
Self-programming
DMA
USB		 8KB to 256KB Flash
48MHz
Multiple serial communication modules (SERCOM)
Analog capability
14- to 64-pin packages
Atmel | SMART SAM E ARM Cortex-M7 MCUs Scalable Performance and Memory Density
Up to 384kB SRAM
Rich Set of Package Options
Ease of Use		 Internet of Things
Mobile electronics
Home appliances
PC peripherals
Industrial Automation
Building automation
Smart energy		 CPU core
High performance
Touch
Wireless
Low power
Secure technology		 Up to 2MB Flash and 384kB SRAM
300MHz max frequency
Multiple serial communication modules including Ethernet, CAN and HS USB OTG + Phy
Advanced Analog and Timers
100- to 144-pin packages
Atmel | SMART SAM G ARM Cortex-M4-Based MCUs with FPU Low Power
Highest Throughput
Fast Wakeup
Ease of Use		 Mobile
Tablets
Ultrabooks
IoT
Gaming
Healthcare
Wearables		 ARM Processor + FPU
DMA
Atmel picoPower®
Event system
SleepWalking
Self-programming		 16-512KB Flash
49 pins
3mm x 3mm WLCSP
Down to 100uA/MHz in Active mode
Up to 96MHz
Atmel | SMART SAM L ARM Cortex-Based MCU Ultra Low Power Battery-powered
Internet of Things
General purpose
Smart Energy
Wearables
Home Automation		 ARM processor
Low power
QTouch capacitive touch
Event system
Self-programming
DMA
USB
Sleepwalking
Segment LCD
Tamper Detection		 32KB to 256KB Flash
32 to 48MHz
Down to 35uA/MHz in Active mode
Down to 900nA with 40kB of SRAM retained
490nA in Backup with RTC

Multiple serial communication modules (SERCOM)
Analog capability
OpAmps
32- to 100-pin packages
Atmel | SMART SAM S ARM Cortex-M7-Based MCU Scalable Performance and Memory Density
Up to 384kB SRAM
Rich Set of Package Options
Ease of Use		 Internet of Things
Mobile electronics
Home appliances
PC peripherals
Industrial automation
Building automation
Smart energy		 CPU core
High performance
Touch
Wireless
Low power
Secure technology		 Up to 2MB Flash and 384kB SRAM
300MHz max frequency
Multiple serial communication modules including Ethernet, CAN and HS USB OTG + Phy
Advanced Analog and Timers
100- to 144-pin packages
Atmel | SMART SAM V ARM Cortex-M7-Based MCUs Highest performance Audio processing
Ethernet-AVB
MediaLB/MOST		 ARM Cortex-M7
CAN-FD		 512KB to 2048KB Flash
300MHz
256KB to 384KB SRAM
Ethernet-AVB
High Speed USB
CAN-FD
MediaLB
Ultra low power Backup with SRAM
64- to 144-pin packages
Atmel | SMART SAM3N Cortex-M3-Based Flash MCU Uncompromised Performance and Ease of Use Industrial control
Metering
Medical
Test and measurement
Toy and consumer peripherals		 ARM processor
QTouch capacitive touch
Low power
Data speedway
Self programming		 16KB to 256KB Flash
48-, 64- and 100-pin packages
48MHz
Native Qtouch® support
Atmel | SMART SAM3S Cortex-M3-Based Flash MCU Simplifies PCB Design and Reduces Power Consumption Industrial control
Metering
Consumer goods and toys
Medical		 ARM processor
QTouch capacitive touch
Low power
Data speedway
Self programming		 64KB to 256KB Flash
48-, 64- and 100-pin packages
64MHz
Native Qtouch® support
Multiple high-speed communication peripherals
Atmel | SMART SAM4L Cortex-M4-Based Flash MCU Lowest Power in Active and Sleep Modes
Shortest Wake-up Time
Highly Efficient Signal Processing
Ease of Use		 Sensors and Detectors
Medical Meters
Remote Controls
Toys
Wireless Devices		 Low power
ARM processor
QTouch capacitive touch		 128KB to 256KB Flash
48-, 64- and 100-pin packages
48MHz
Multiple high-speed communication peripherals
Built-in security features
Atmel | SMART SAM4E Cortex-M4-Based Flash MCU High Performance and Advanced Connectivity for Industrial Applications Industrial automation
Building and home control
Energy management
Aftermarket		 ARM Cortex-M4 processor
Low power
Security		 512KB to 1MB Flash
128KB SRAM
2KB of cache
120MHz
Connectivity peripherals
Advanced analog
100- and 144-pin packages
Atmel | SMART SAM4N Cortex-M4-Based Flash MCU Converges Performance and Simplicity Industrial Automation and M2M
Consumer and Appliance
Building and Home Control
Metering		 ARM processor
Low power
Self-programming
Data speedway		 512KB to 1MB Flash
100MHz
Multiple fast serial communication peripherals
48-, 64- and 100-pin packages
Atmel | SMART SAM4S ARM Cortex-M4-Based Flash MCU Scalable Performance and Memory Density, Power Efficiency Medical
Industrial control
Industrial automation
M2M
Smart grid
Consumer and computing peripherals
Embedded audio		 ARM processor
QTouch capacitive touch
Low power
Data speedway
Self programming		 Up to 2MB Flash
Up to 160KB SRAM
64- and 100-pin packages
Up to 120MHz
Native QTouch support
Multiple high-speed communication peripherals
Atmel | SMART SAM3U ARM Cortex-M3-Based Flash MCU Industry's First Cortex M3-based-MCU with On-chip High-Speed USB High-speed gateways in industrial and medical applications
PC & mobile phone accessories
USB tokens & drives
Data loggers		 ARM processor
QTouch capacitive touch
Low power
Data speedway
Self programming		 64KB to 256KB flash
100- and 144-pin packages
96MHz
Native Qtouch support
High-speed (480Mbps) USB Device and Phy
1.62V to 3.6V operation
Atmel | SMART SAM3A ARM Cortex-M3-Based Flash MCU Optimized for CAN Connectivity Industrial control
Machine-to-machine (M2M)
Test and measurement
Medical Smart grid
PC and consumer peripherals		 ARM processor
QTouch capacitive touch
Low power
Data speedway
Self programming		 256KB to 512KB dual-bank Flash
Up to 100KB SRAM
100- and 144-pin packages
86MHz Connectivity peripherals
Native QTouch support
Atmel | SMART SAM3X ARM Cortex-M3-Based Flash MCU Delivers Enhanced Connectivity Industrial control
Machine-to-machine (M2M) systems
Test and measurement
Medical
Smart grid
PC and consumer peripherals		 ARM processor
QTouch capacitive touch
Low power
Data speedway
Self programming		 256KB to 512KB dual-bank Flash
Up to 100KB SRAM
100- and 144-pin packages
86MHz
Connectivity peripherals
Native QTouch support
Atmel | SMART SAM7S/SE ARM7TDMI-Based Flash MCU Improved Deterministic Performance for Real-time Applications Consumer goods and toys
Industrial control
Metering
Medical		 ARM processor
Low power
Data speedway
Self programming		 16KB to 512KB Flash
48-, 64-, 128- and 144-pin packages
55MHz
Peripheral DMA controller maximizes data throughput
Selected devices feature SDRAM, NAND Flash interface and ECC
Atmel | SMART SAM7X/XC ARM7TDMI-Based Flash MCU Connectivity Telecom
Metering
Building automation
Medical		 ARM processor
Low power
Data speedway
Self programming		 128KB to 512KB Flash
100-pin packages
55MHz
Ethernet, CAN, USB
Selected devices feature crypto
Atmel | SMART SAM9XE ARM926EJ-Based Flash MCU ARM9-based Flash MCU with Optimized Performance, Connectivity and Data Bandwidth Telematics
Medical
Industrial automation		 ARM processor
Low power
Data speedway
Self programming		 128KB to 512KB Flash
208- and 217-pin packages
180MHz
Multiple networking and connectivity options
Atmel | SMART SAM9N/CN ARM926EJ™-Based Embedded MPU High-performance Entry-level Processors with Security Option Home and commercial building automation
Human-machine interface (HMI)
White goods
Point-of-sales (POS) terminals
Medical equipment		 ARM processor
Low power
Data speedway		 400MHz
Multiple connectivity peripherals
Support for DDR2, LPDDR and MLC NAND Flash
Optional crypto and secure BootROM
Atmel | SMART SAM9R ARM926EJ-Based Embedded MPU Performance and Connectivity Optimized for USB-enabled Applications White goods
Home and commercial building automation
Point-of-sale (POS) terminals		 ARM Processor
Low power
Data Speedway		 240MHz
HS USB, LCDC, Resistive Touch
Peripheral DMA controller maximizes data throughput
Small footprint package option
Atmel | SMART SAM9G ARM926EJ-Based Embedded MPU Highly-Integrated Embedded Microprocessors Optimized for Industrial Applications Building automation
Point-of-sale (POS) terminals
Data loggers
Medical equipment		 ARM processor
Low power
Data speedway		 240 MHz to 400MHz
Multiple connectivity peripherals
High bandwidth architecture
Support for DDR2 and LPDDR
Atmel | SMART SAM9X ARM926EJ-Based Embedded MPU High-performance Embedded Microprocessors with Multiple Networking/ Connectivity Peripherals Home and commercial building automation
Human-Machine Interface (HMI), Machine-to-Machine (M2M) systems
Point-of-Sale (POS) terminals
Medical equipment
White goods		 ARM processor
Low power
Data speedway		 400MHz
Multiple connectivity peripherals
Advanced graphics control
Support for DDR2, LPDDR and MLC NAND Flash
SAM9M ARM926EJ Embedded Atmel | SMART SAM9M ARM926EJ-Based Embedded MPU Multimedia-enabled High-performance MPU with Hardware Video Decoder and Optional Crypto Home and commercial building automation
Point-of-sale (POS) terminals
Entertainment systems
Internet appliances
Medical
Video-enabled control panels		 ARM processor
Low power
Data speedway		 400MHz
DDR2 and LPDDR support
Hardware video decoder with playback in multiple formats and resolutions
2D accelerator with scaling, rotation, color conversion and picture-in-picture
Selected devices with crypto
Legacy Products World's First ARM-based Microcontrollers Medical
Industrial automation
Point-of-Sale (POS) terminals
Metering
